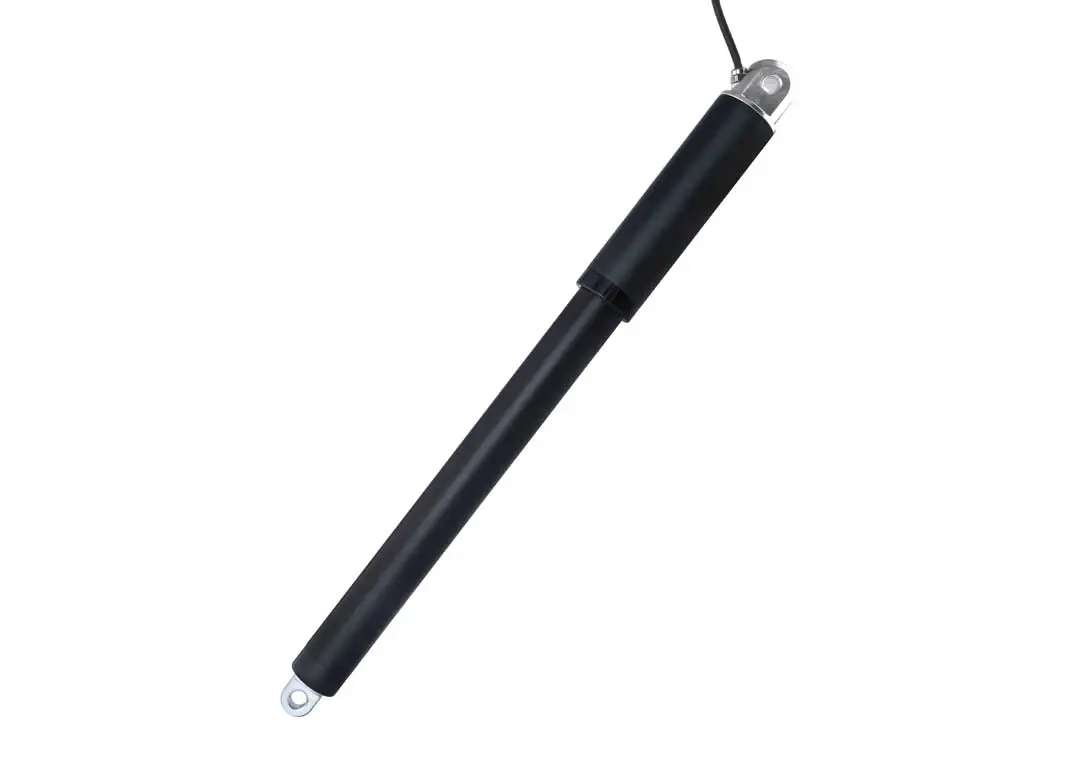

Compact and precise, the DDTG-53 Micro Tubular Linear Actuator is a small but powerful linear actuator ideal for tight spaces and high accuracy applications. With a diameter of 53mm and a force output of up to 200N, it offers smooth and reliable linear motion using a ball screw mechanism and stepper motor. Optional features include built-in limit switches and position feedback.
| Model | DDTG-53 |
| Voltage (V) | 12V or 24V |
| No-load current | ≤ 2 |
| ≤ 1 | |
| Load current(A) | ≤ 10 |
| ≤ 5 | |
| Power(W) | 150 |
| IP rating | IP67/IP69K |
| Operating temperature | -20~60C |
| Stored temperature | -40~60C |
| Noise level | ≤60db |
| Gap (mm) | 0.5-1 |
| Duty cycle(S2) | Work for 2 minutes, stop for 18 minutes |
| Outer tube material | Aluminum alloy |
| Screw material | 304 stainless steel |
Piston material (telescopic tube) | 304 stainless steel |
| Nut material | Plastic/Copper |
| Terminal material | Aluminum alloy |
| Wire length | Customized according to customer |
| Certification | CE,IFTA16949 |
| Connector standards | No connector/2 core/6 core |
| Terminal standard | O type |
| Service life | ≥50K |
Load and speed
| Max load (N) | 100 | 300 | 1200 | 1800 | 3000 | 3500 | 4500 | 5000 | 6000 |
| Self-locking force(N) | 500 | 600 | 2500 | 3500 | 6000 | 8000 | 8000 | 8000 | 8000 |
| no-load speed(mm/s) | 150 | 80 | 13 | 13 | 13 | 8.5 | 8.5 | 8.5 | 8.5 |
DDTG-53 Min. install dimension | (mm) | Standard | Hall Sensor | Over Current Protection |
L+S | 305+S | 320+S | 325+S | |
A | 205 | 220 | 225 |
Wire length
Stroke length
Install dimension
Material of outer tube（6063AL or SUS304）
Color
Bracket
Control box
