The DDTG-26 Micro Tubular Linear Actuator is a compact and efficient actuator designed for precise linear motion applications. With a small form factor and a tubular design, it is ideal for applications where space is limited. The actuator offers high speed and accuracy, making it suitable for various industries such as robotics, medical equipment, and automation.
Model | DDTG-26 |
Input Voltage | 12V or 24 or 36V or 48V |
material of outer tube | AL 6063/stainless steels 304 |
material of lead screw | stainless steels 304 |
material of piston rod | stainless steels 304 |
material of the nut | DuPont POM, USA |
Stroke Length | 50～200mm |
Motor Type | brushed motor |
Max Load | 500N |
Self-locking Force | 600N |
No-load Speed | 5-15mm/s |
Load Speed | 3.8-11mm/s |
Limit Switch | built-in |
Duty Cycle | under max load,work for 50 times , stop for 20minutes（15%-20%）;under min load can work continuously |
Protection Class | IP67 |
Operating temperature | -20-60ºC |
Wire length | Custom |
Noise on load | ≤60db |

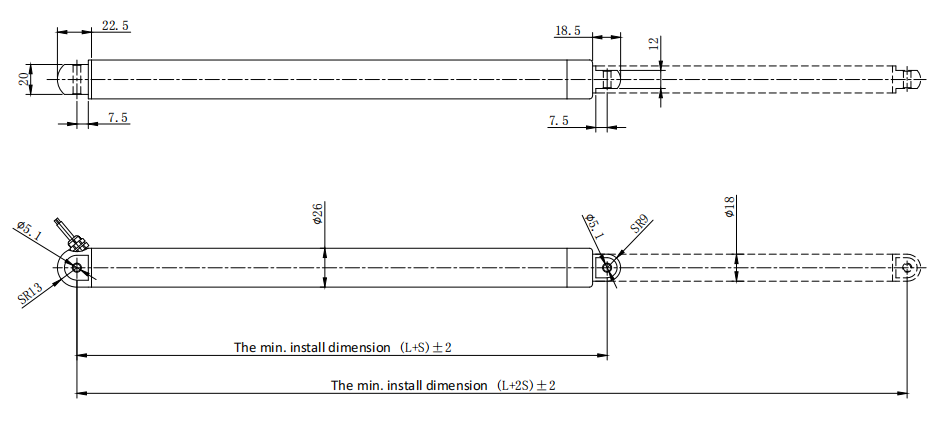

DDTG-26 Min. install dimension | (mm) | Standard | Hall Sensor |
L+S | 155+S | 170+S |
Wire length
Stroke length
Install dimension
Material of outer tube（6063AL or SUS304）
Color
Bracket
Control box
